1/5TrailerTwo Horse Straight Load

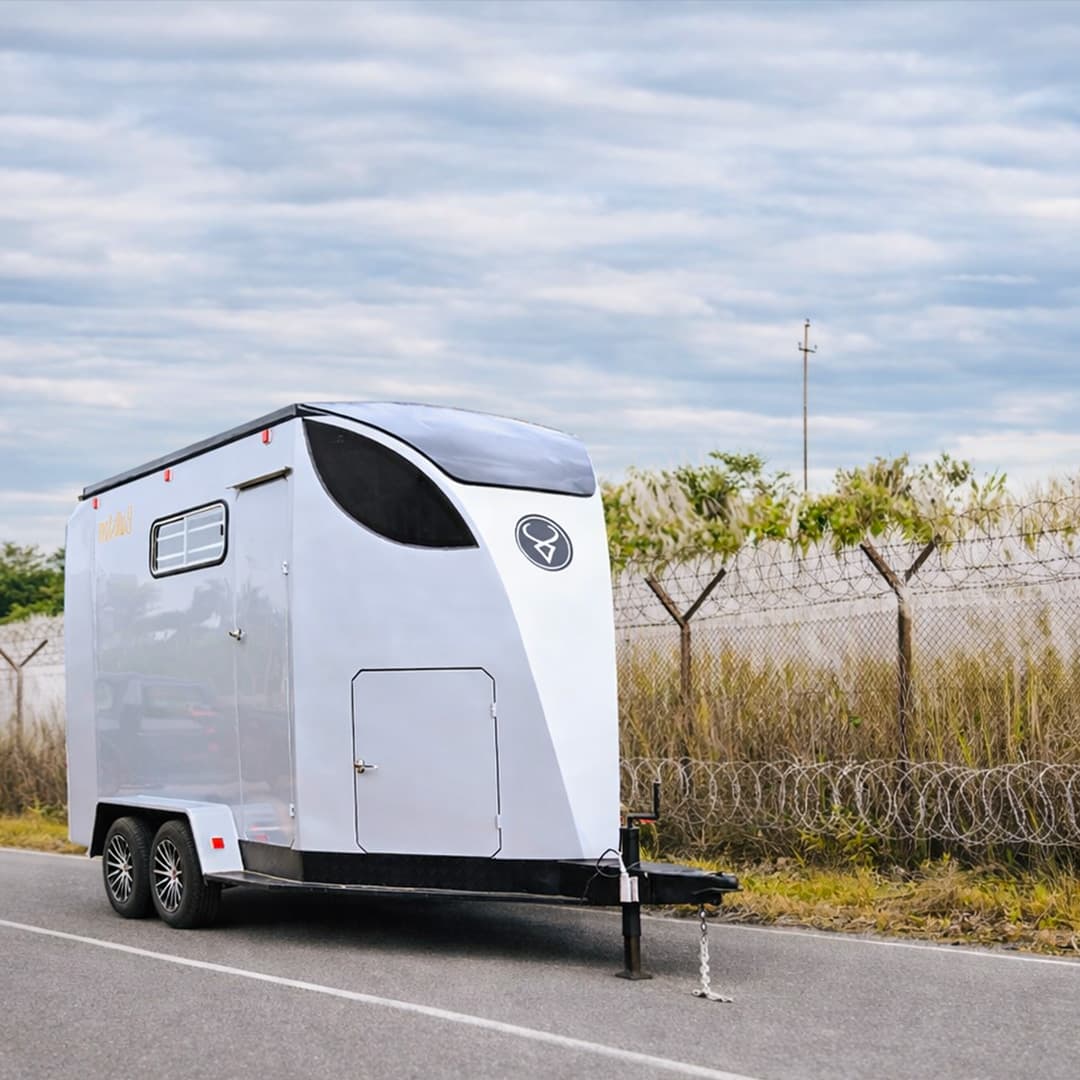

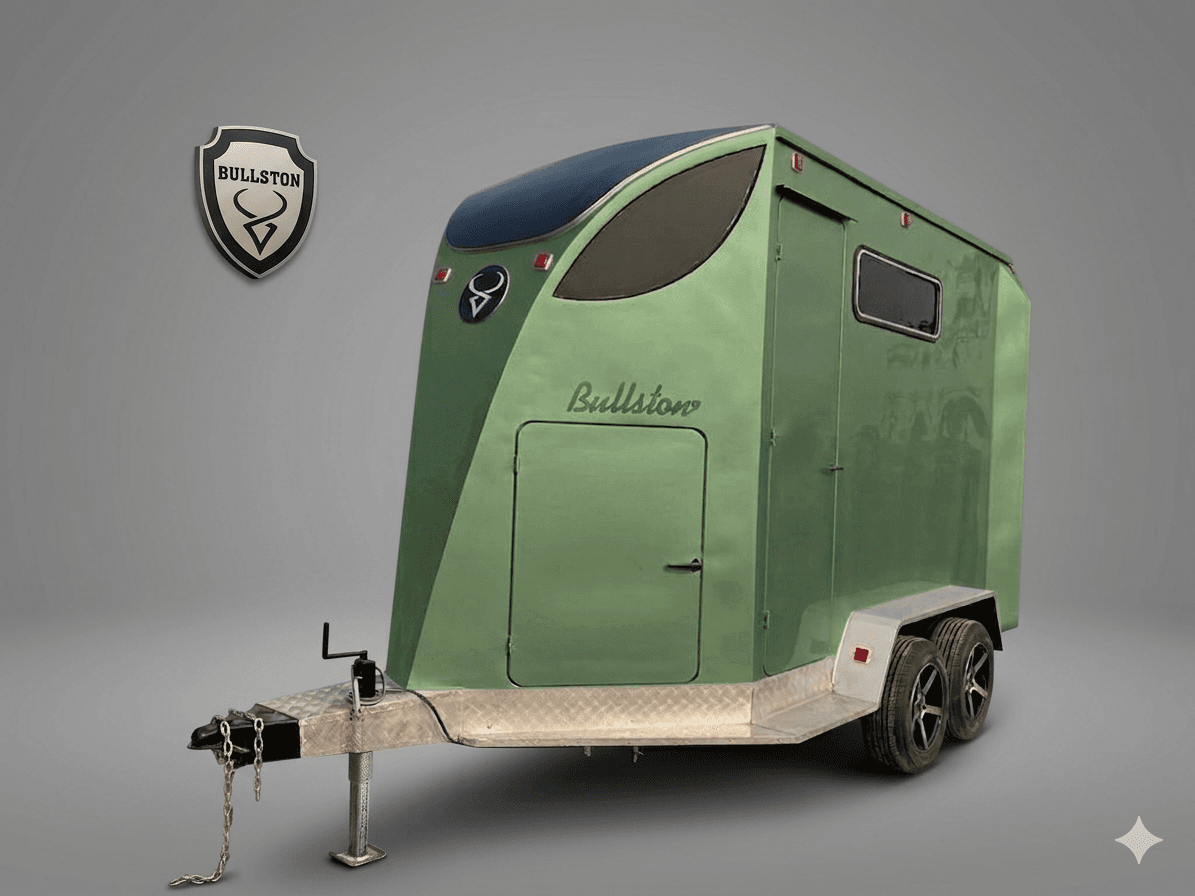

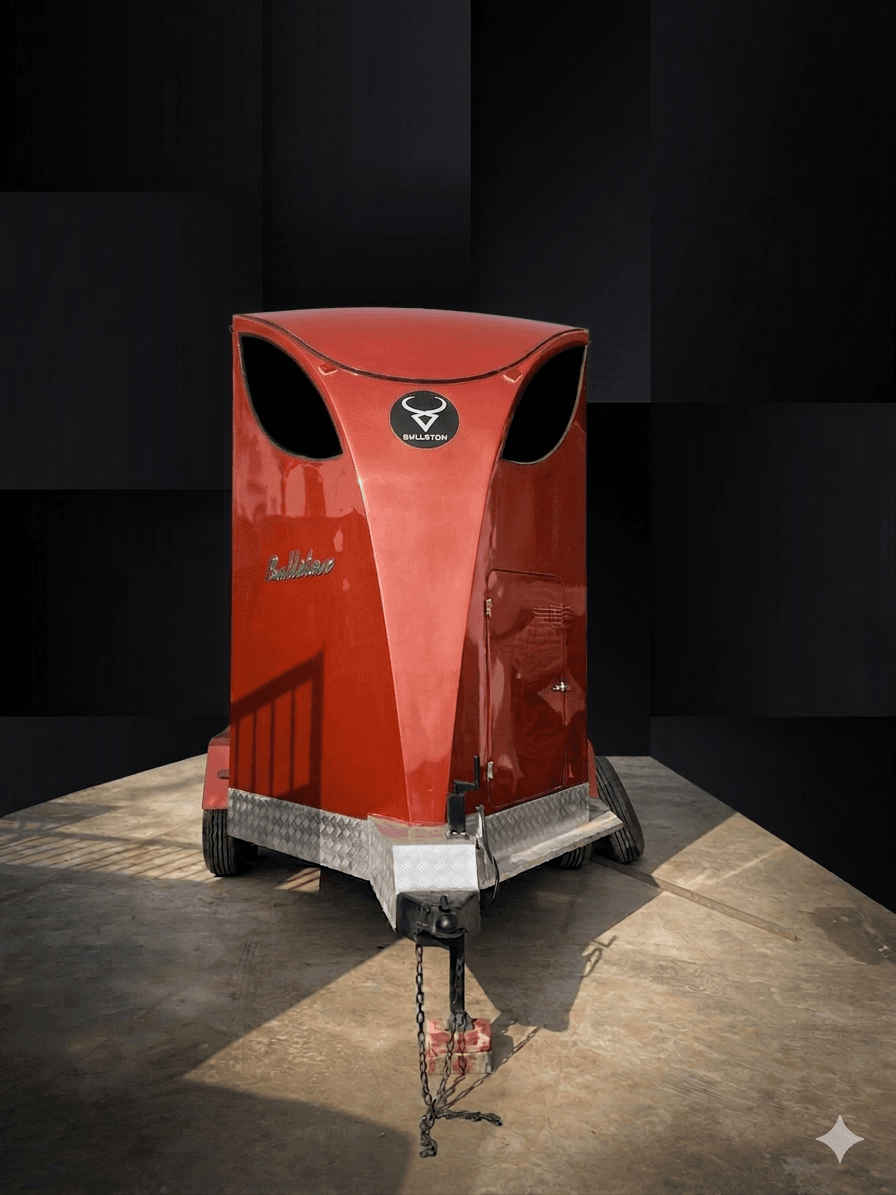

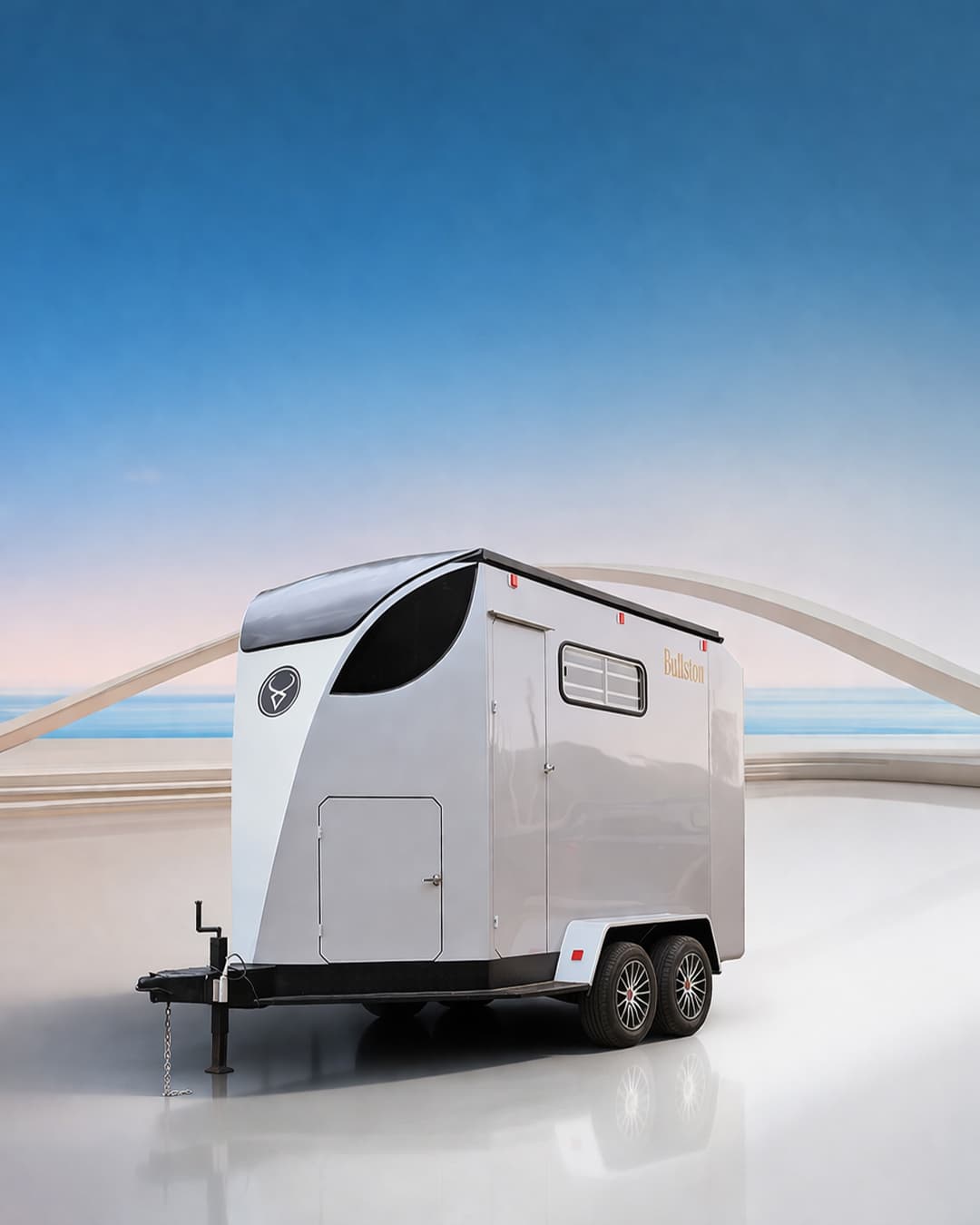

Bullston Aero
Two Horse Straight Load
Overall length
Inside height
Stall length
Base weight
The Bullston Aero is a purpose-built two-horse straight load trailer engineered for safe, comfortable long-distance transport. A galvanized steel body, fiberglass-covered chassis, padded dividers, and an aerodynamic nose combine to deliver a low-maintenance, rust-resistant rig that protects your horses trip after trip. Available in standard, XL and XXL sizes so you can match stall width and height to the horses you haul.
- 5-year structural warranty
- MOQ 3 units per order
- XL & XXL sizes available
What’s in this build
Built to stay rust-free
Galvanised steel outer shell with a fiberglass-covered chassis, sealed so the floor holds for the life of the trailer.
Sized for the long haul
7'6" inside height, 7' stall length, and an aerodynamic nose that steadies the tow and quiets the ride.
Comfort for the horses
Padded center divider, breast and butt bar pads, and 2" marine-wood sidewall padding across the stall.
Brakes, axles, coupler
4-wheel electric self-adjusting brakes, 7,000 lb Bullston axles, and a 12,500 lb adjustable coupler.
Lit for road and yard
8 LED roofline marker lights, 6 LED rear turn and brake lights, and a 7-pin molded plug wired in protective casing.
Warranty on the structure
5-year structural warranty and 8-year floor warranty, written down and honored at all three yards.
The full spec sheet.
Every measurement, rating, and option, broken down the way that you need to see it.
Dimensions & Weight
- Weight (without options)
- 2,500 lb
- Overall length
- 11'5"
- Stall length
- 7'
- Head area
- 3'
- Inside height
- 7'6"
Chassis & Running Gear
- Adjustable coupler
- 12,500 lb, 2-5/16" ball
- Bullston axles
- Square tube, leaf spring
- Axle capacity
- 7,000 lb
- Brakes
- 4-wheel electric, self-adjusting
- Wheels
- Aluminum
- Tyre size
- 15 inch radial
- Spare tyre
- Standard
- Electric jack
- Optional
Construction & Finish
- Structure material
- Steel
- Outer shell
- Galvanised steel
- Chassis covering
- Fiberglass (rust-free floor)
- Insulated roof and side walls
- Standard
- Body colors
- Blood red, silver, black, emerald green, white
- Custom color option
- Yes
Horse Area & Tack
- Saddle racks
- 2
- Bridle hooks
- 6
- Carpet on saddle area floor
- Standard
- Steel feed buckets
- One per horse
- Interior tie rings per stall
- 3
- Roof vents (horse area)
- 18 × 18 in
- Rubber floor mats
- Full floor coverage
- Fenders
- Steel with full-length gravel guard
Safety & Dividers
- Aerodynamic nose
- Standard
- Window guards
- Horse-friendly round bars on all horse-area windows
- Door latches
- Deadbolt with exterior safety latches
- Breast / butt bars
- Easily removable
- Front post
- Easily removable
- Center divider
- Padded, easily removable
- Head divider
- Solid, easily removable
- Side wall padding
- 2" on divider and sides
- Breast & butt bar pads
- Standard
- Sidewall material
- Marine wood with 2" thick pad
- Bullston release pins
- Easy-release butt & breast bar
- Center divider tie-back
- To ditch side wall
Lighting & Electrical
- Fender marker lights
- 2 turn signal / marker
- Rear lights
- 6 LED turn / brake, dual set
- Roofline marker lights
- 8 LED sealed beam
- Traveling turn signal
- Up high in rear
- Reflectors
- 6
- Interior dome lights
- 3 double-dome
- Break-away battery
- Rechargeable with tester
- Fuse box
- Standard
- Plug
- Molded one-piece 7-pin (or 6-pin)
- Wiring
- Placed in protective casing
